Explore the unreachable with the Model UW18 Handheld Endoscope. This versatile tool is designed for non-destructive inspection of narrow spaces and areas that are not directly visible to the human eye. Whether you’re working in air conditioning maintenance, wall crack detection, plumbing, aviation, automotive, mechanical equipment, or chemical industries, this endoscope is your go-to device for thorough and precise inspections.
Features
- USB Interface: Convenient connection for data transfer and charging.
- Adjustable LED Brightness: Three levels of LED brightness to suit different inspection needs.
- Photo/Video Storage: Capture high-quality images and videos with storage capability.
- Compatibility: Supports Apple iOS, Android, HarmonyOS phones, and iPad.

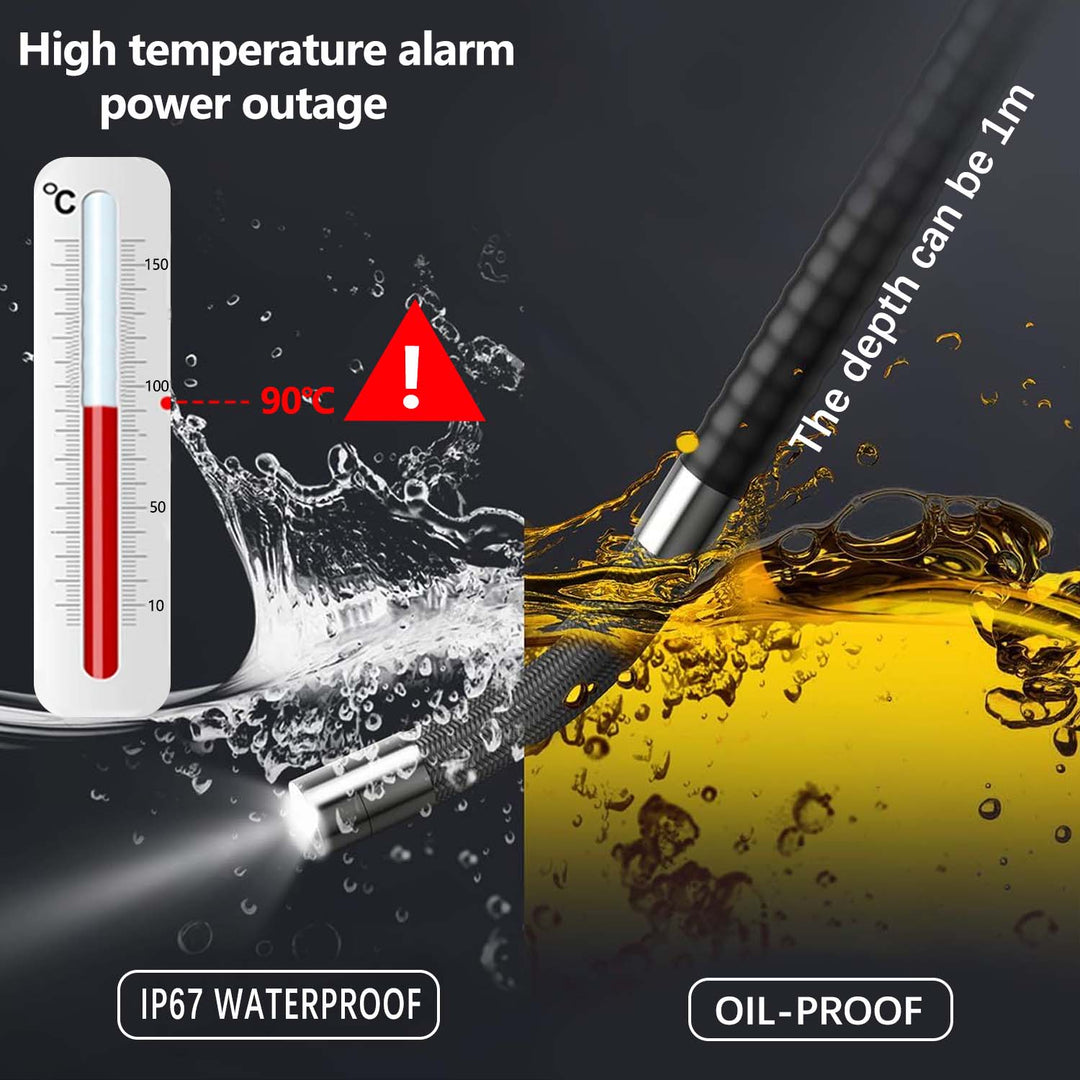

- Waterproof: Rated IP67 for reliable performance in wet environments.
- High Resolution: 1920*1080P pixel resolution for clear and detailed visuals.
- Durable Design: 8.5mm diameter lens with a 1/5” CMOS image sensor and a 75° viewing angle.
- Flexible Hose: 1.0m soft steel wire hose for extended reach and durability.
- Long Battery Life: Equipped with a 3000mAh battery for extended outdoor use.
- Rotatable Camera: Camera can rotate 180° for comprehensive inspection coverage.
- Robust Construction: Sapphire glass lens for scratch resistance and tungsten braided wire mesh for extra durability.
Technical Specifications
- Weight: 0.5kg (product only), 0.96kg (including packaging)
- Packaging Dimensions: 36.8cm x 20.9cm x 7.9cm (14.94in x 8.23in x 3.11in)
- Focus Range: 30mm-80mm
- Operating Temperature: -10°C to 60°C, with overheat protection at >90°C
- Video Output Format: MP4
- Handle Material: Anti-slip plastic steel with a durable metal grip
- Camera Rotation: 180° rotation in both directions
- Battery Capacity: 3000mAh
- Cable Length: 1 meter
Functionality
- Wide Application: Ideal for inspecting air conditioning pipes, wall cracks, drains, aviation and automotive parts, and industrial machinery.
- Water and Oil Resistant: Ensures long-lasting performance in tough environments.
- High Durability: The camera can withstand over 20,000 rotations and the cable has been tested for 100,000 folds.
- User-Friendly: The green indicator light flashes when the battery is low, and a red light indicates charging.
- Secure Grip: The handle features an anti-slip design for better control during use.
- Advanced Optics: Sapphire glass lens for enhanced scratch resistance and image clarity.
Package Contents
- UW18 Handheld Endoscope
- User Manual
- Charging Cable
- Support Stand
- Additional Accessories and Packaging Box
Usage Scenarios
- Clearing air conditioning pipe blockages
- Inspecting wooden wall cracks
- Unclogging drains
- Automotive and aviation inspections
- Industrial machinery and chemical equipment checks
